| Logical compiler
|

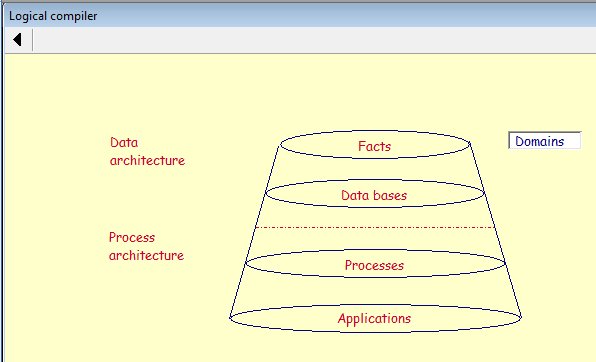

| On clicking on the words 'Logical requirements compiler' from the main menu the information architect will be presented with the following screen: |
 |
The display of this screen will depend on the level of the Ripose architect using Caspar. In this example the RA0 architect signifies access to all sections. The RA5 will only get to see the Data architecture {Facts and Data bases} as well as the Domains menu; The RA6 the Process architecture {Processes and Applications}. The reason for this is to keep the toolset as simple as possible. On selecting the domains menu a pop up menu will be displayed enabling the RA5 to define the standard domain names and the data base domains (which uses the standard domain names); The standard domain name screen looks like the following:  The RA5 can add additional standard domain names by selecting a gui in the toolbar. The data base domain names screen looks like the following:  The standard domain names linked to a specific dbms will be used in the data base design module to generate the create sql tables. |
